Ensuring Perfection: Our Acceptance Protocol
We partner with you to verify that every custom nozzle and gripper meets the highest standards of quality and performance before final approval.
A Guideline for Acceptance Testing
Follow these steps to comprehensively evaluate your new custom SMT solution.

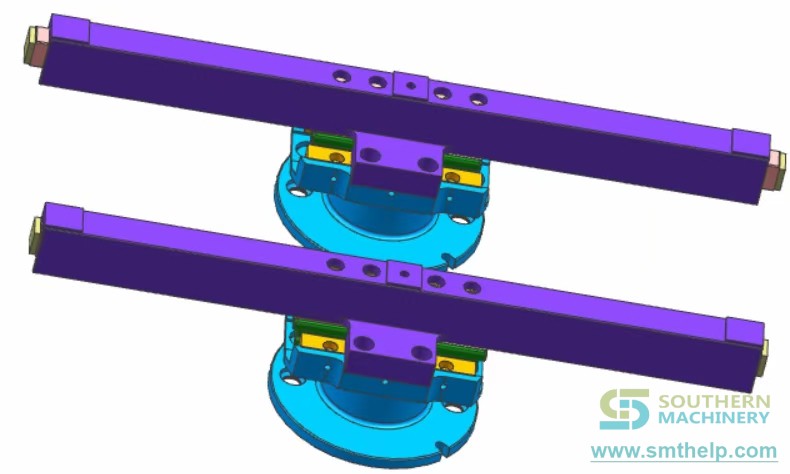

Visual & Dimensional Inspection
Upon receiving your custom part, conduct a thorough visual check. Compare it against the approved technical drawings. Verify critical dimensions, surface finish, and overall build quality. Ensure there are no physical defects from shipping.
Machine Fitment & Calibration
Mount the nozzle or gripper onto the designated SMT machine. Confirm that it fits securely in the placement head. Run the machine's standard calibration routines to ensure the vision system correctly recognizes the tool and its offsets are accurately set.
Dry Run Pick-and-Place
Perform a series of pick-and-place cycles without solder paste or a live PCB. This tests the tool's ability to pick the component from the feeder, travel to the placement location, and release it smoothly without issue.
Live Production Trial
Conduct a small, controlled production run using the actual PCBs and components. This is the most critical test to evaluate performance under real-world conditions. Place a statistically significant number of components (e.g., 100-500) for analysis.
Performance Data Analysis
Analyze the results from the live trial. Key metrics to check include the pick-up rate (should be >99.9%), placement accuracy (X, Y, and rotation), and the rate of any defects such as component damage, shifting, or tombstones.
Final Approval & Feedback
If the tool meets or exceeds performance expectations, provide your final approval. If any issues are found, document them with data and images and provide this feedback to our engineering team for rapid analysis and resolution.
Our Commitment to Your Success
Our partnership doesn't end at delivery. We stand by the quality and performance of our custom solutions and are committed to ensuring they integrate seamlessly into your production line.
-
Performance Guarantee
We guarantee that our custom tools will meet the performance specifications outlined in the design proposal.
-
Rapid Support & Revision
In the rare event that a tool doesn't perform as expected, our engineering team will work with you to analyze the issue and provide a revised solution quickly.
