Customized Feeder Design & Manufacturing
SMT & THT Customized Feeders
Design and manufacture custom SMT and THT feeders for every application: radial tape, axial tape, vibration tube, multi-tube, vibratory bowl, label, SOP tube, and odd-form feeders. 20+ years experience. Patent owner. Enable your SMT machine with auto-insertion capability at a fraction of THT machine cost.
The Feeder Challenge
Odd-form components stall your SMT line
SMT pick-and-place machines handle standard taped components efficiently, but odd-form, radial, axial, and bulk components create a bottleneck. Manual insertion is slow, costly, and error-prone. A custom odd-form feeder enables your existing SMT machine to place THT and odd-form components automatically — at $5–8K instead of $50–70K for a dedicated THT machine.
Manual Insertion Bottleneck
Radial, axial, and odd-form components require manual placement. One machine can replace 10 workers, reducing labor cost and eliminating human error.
→ Custom feeders enable auto-insertion on your SMT machineTHT Machine Cost Too High
A dedicated THT insertion machine costs $50–70K. An odd-form feeder achieves the same function for $5–8K — a 10x cost saving with high ROI.
→ Odd-form feeder at 1/10 the cost of a THT machineComponent Variety Challenges
E-caps, inductors, transformers, relays, terminals, LEDs, labels, SOP chips — each needs a different feeding mechanism. Standard feeders cannot handle them all.
→ Eight feeder types cover the full component rangeMachine Brand Compatibility
Feeders must integrate with Fuji, JUKI, Samsung, Yamaha, Universal, and Siemens SMT machines. Non-standard designs require custom interfaces.
→ Compatible with all major SMT machine brandsFeatures · Advantages · Benefits
What our custom feeders deliver
Every feeder is designed and manufactured in-house by Southern Machinery. We hold patents for odd-form feeder technology and have 20+ years of experience serving GE, Bosch, Philips, Flex, Jabil, and Juki.
Full Custom Design from Sample
Advantage: Send us your component sample or specification. We design and manufacture a feeder tailored to your exact component geometry, lead span, and tape pitch.
Benefit: No more struggling with off-the-shelf feeders that don't fit. Get a feeder that works perfectly with your specific components, reducing jams and misfeeds.
Patented Odd-Form Feeder Technology
Advantage: We hold 1 invention patent and 2 new practical patents for THT radial feeders. Our odd-form feeder design is proven in production at GE, Bosch, and Flex.
Benefit: Deploy battle-tested, patent-protected technology. Reduce risk with a proven design trusted by Fortune 500 manufacturers.
1.5–2 Second Cycle Time
Advantage: Motor or pneumatic drive systems deliver 1.5–2s cycle time across radial, axial, and tube feeders. Vibration feeders achieve 2–3s for IC components.
Benefit: Keep pace with your SMT pick-and-place machine. Eliminate the speed gap between SMT and THT operations without buying a dedicated THT machine.
Eight Feeder Types, One Supplier
Advantage: Radial tape (RF1000), axial tape (AF2000), vibration tube (VF3000), multi-tube (TF4000), vibratory bowl (BF200L), label (SLF100X), SOP tube (SSTF01), and vibration (S-JVF03) feeders — all from one source.
Benefit: Simplify procurement and support. Get all feeder types from a single supplier with consistent quality, unified after-sales service, and integrated solutions.
Smart Factory & Industry 4.0 Ready
Advantage: Feeders support IO communication or standalone self-control. ARM-based software control (STC32). Compatible with SMT mounter interfaces and Industry 4.0 workflows.
Benefit: Integrate with your smart factory vision. Enable automated production with real-time monitoring, reducing manual intervention and enabling data-driven process optimization.
Feeder Calibration Jig Support
Advantage: Dedicated calibration jigs for Fuji NXT and other SMT feeders ensure precise alignment and improve feeder efficiency. Operation manuals and training provided.
Benefit: Maintain feeder accuracy over time. Reduce misplacement defects. Extend feeder service life with proper calibration and maintenance procedures.
Feeder Product Line
Eight feeder types for every component
From radial tape feeders for e-caps and LEDs to vibratory bowl feeders for bulk components, label feeders for protective films, and SOP tube feeders for IC chips — we design and manufacture the complete range.
RF1000 Radial Tape Feeder
| Component Body | ∅3–10mm; Rect W5–10, L5–25mm |
|---|---|
| Component Height | 5–25mm |
| Tape Pitch | 12.7mm or 25.4mm |
| Lead Span | 2.5–25mm |
| Cycle Time | 1.5–2s |
| Dimensions | 500×100×165mm |
AF2000 Axial Tape Feeder
| Component Body | ∅2–10mm |
|---|---|
| Tape Pitch | 5, 10, 15, 20mm |
| Lead Dia | 0.4–1.0mm |
| Lead Length | 2.5–5mm |
| Cycle Time | 1.5–2s |
| Dimensions | 700×100×165mm |
VF3000 Vibration Tube Feeder
| Component Size | 5×5 – 10×10mm |
|---|---|
| Feeding | Vibration drive |
| Cycle Time | 2–3s |
| Component Range | IC |
| Component Input | Tube package |
| Dimensions | 400×100×165mm |
TF4000 Multi Tube Feeder
| Component Size | 5×5 – 25×25mm |
|---|---|
| Tube Length | 300–650mm |
| Feeding | Motor drive |
| Cycle Time | 1.5–2s |
| Components | Transformer, Relay, Transistor |
| Dimensions | 1480×100×165mm |
BF200L Vibratory Bowl Feeder
| Tracks | 4 (2 short, 2 long) |
|---|---|
| Component Type | LED lens, bulk odd-form |
| Power | 220V |
| Control | Programmable circuit |
| Total Rail Width | 231mm |
| Material | High speed steel + aluminum alloy |
SLF100X Label Feeder
| Feeder Size | 650×165×320mm |
|---|---|
| Weight | 7.5kg |
| Bottom Paper Width | <60mm, <80mm, <100mm |
| Material Type | Label, film, foam, tape, copper foil |
| Feeding Accuracy | X±0.2mm, Y±0.2mm |
| Max Tray Load | 3kg |
SSTF01 SOP Tube Feeder
| Dimensions | 1050×65×400mm |
|---|---|
| Weight | 10kg |
| Material Size | 3×3×3 – 25×25×25mm |
| Tube Length | 200–650mm |
| Feeding Speed | 0.8s |
| Feeding Accuracy | ±0.5mm |
S-JVF03 JUKI Vibration Feeder
| Compatible Machines | JUKI KE3020V, RX6 series |
|---|---|
| Input Channels | 3 |
| Voltage | 24VDC / 220VAC / 110VAC |
| Structure | Linear type, easy maintenance |
| Drive | Pneumatic + electric |
| Inline Ready | Yes, connects to air conveyor |
Machine Compatibility
Feeders for every major SMT brand
Our custom feeders integrate with all major SMT pick-and-place machine brands. If your machine is not listed, send us your component sample — we design a compatible feeder from scratch.
Need a feeder for a different machine? Contact us →
Video Gallery
Watch custom feeders in action
See our feeders operating in real production environments: radial tape feeding, odd-form solutions, vibratory bowl feeders, label feeders, calibration jigs, and Industry 4.0 integration. Click any thumbnail to load the YouTube video.

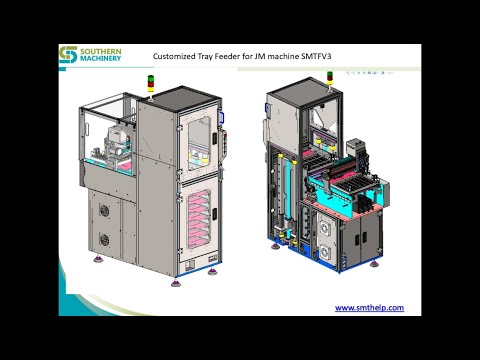

RF1000 Radial Tape Feeder Operation

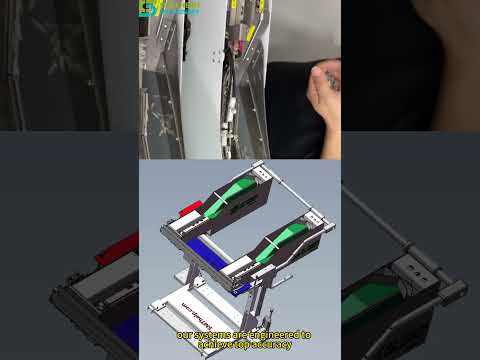

SMT Odd Form Feeder Solution

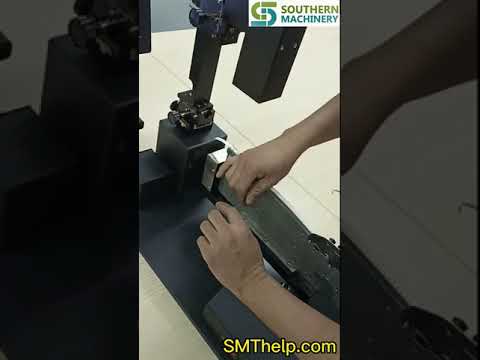

AF2000 Axial Tape Feeder Demo

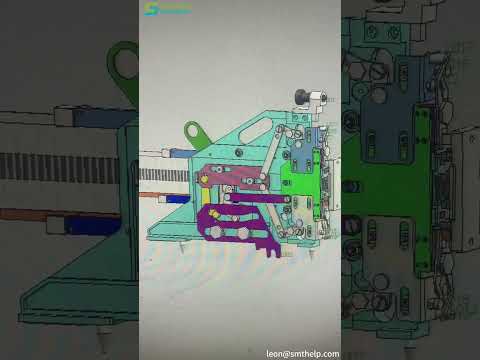

BF200L Vibratory Bowl Feeder

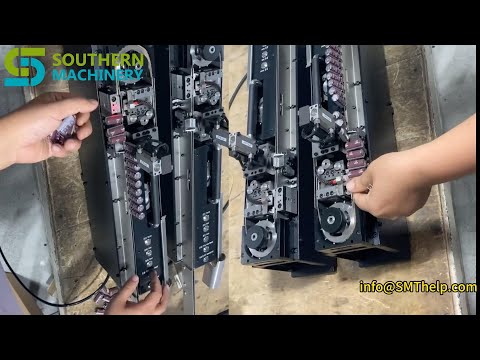

SLF100X Label Feeder in Production

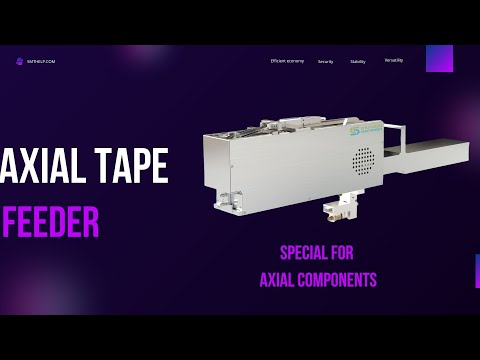

SSTF01 SOP Tube Feeder
Feeder Calibration Jig Operation

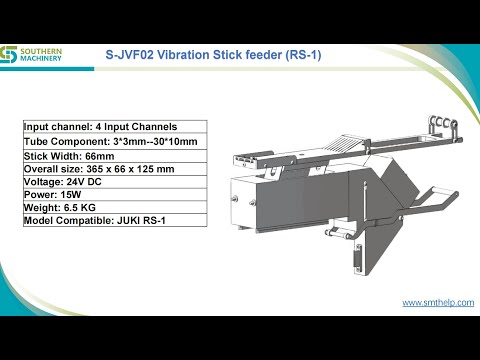

S-JVF03 JUKI Vibration Feeder

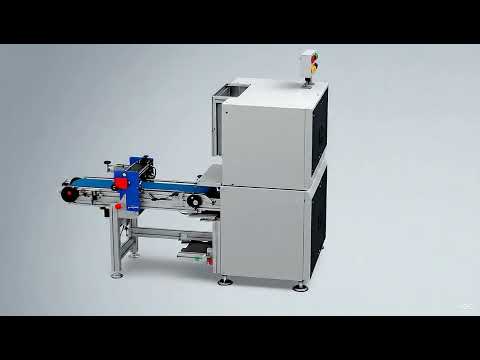

TF4000 Multi Tube Feeder
Stacked Tube Feeder Operation

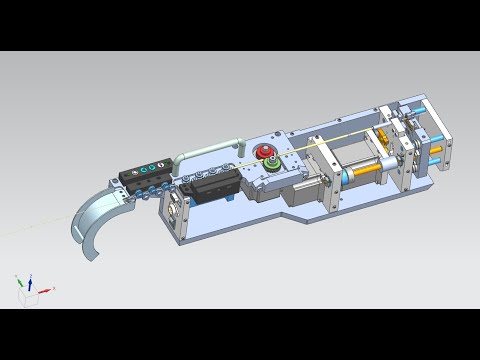

Odd Form Feeder — Industry 4.0 Ready

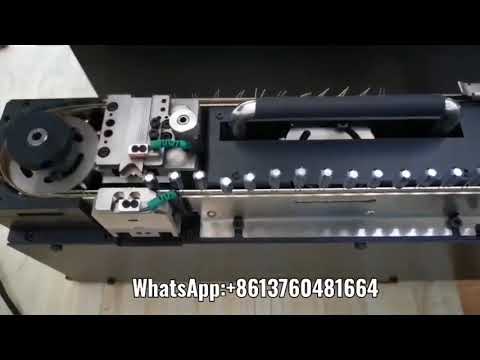

Radial Tape Feeder for LED Production

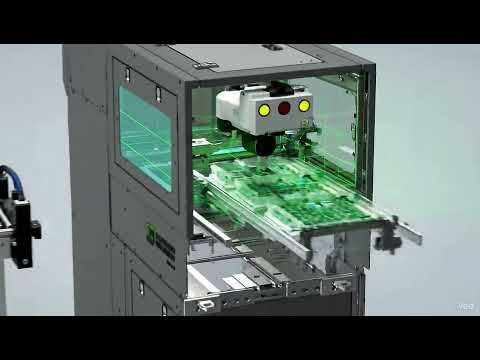

VF3000 Vibration Tube Feeder

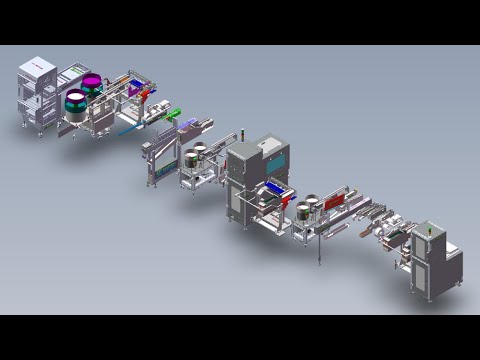

Custom Feeder 3D Design Process

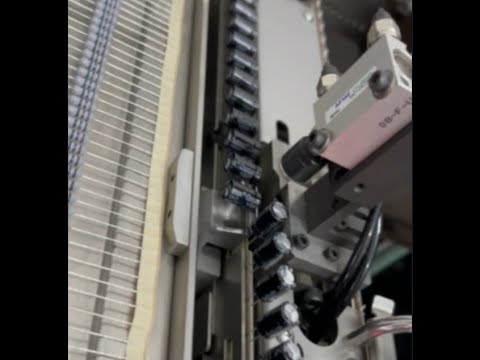

Feeder Installation on SMT Machine
Feeder Maintenance and Service

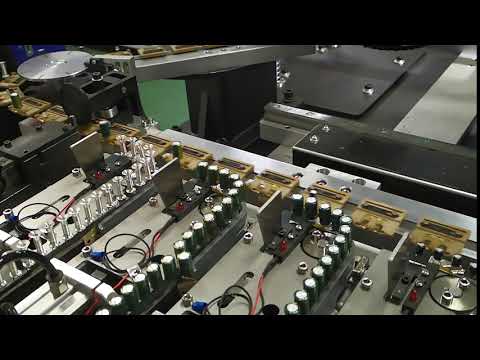

Smart Factory Feeder Integration

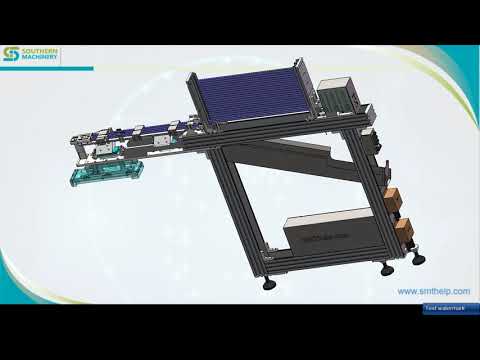

Custom Feeder Design & Manufacturing
THT Feeder with Radial Insertion Machine

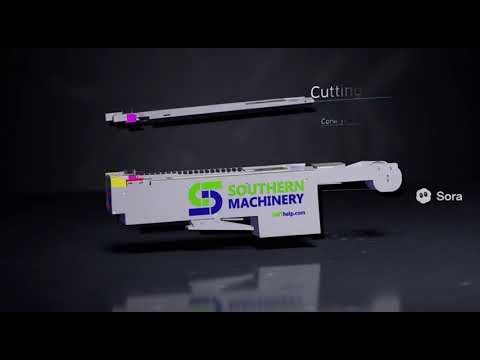

Feeder Component Range Overview

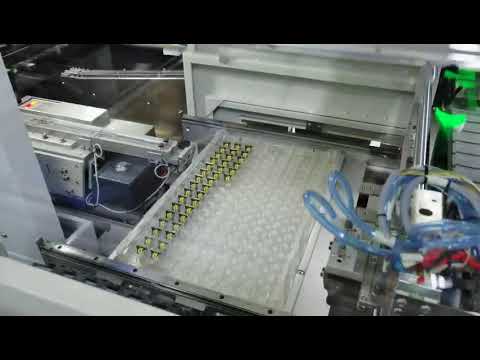

Feeder Interface Configuration
Solder Wire Feeder for EMS
Feeder Spare Parts and Repair

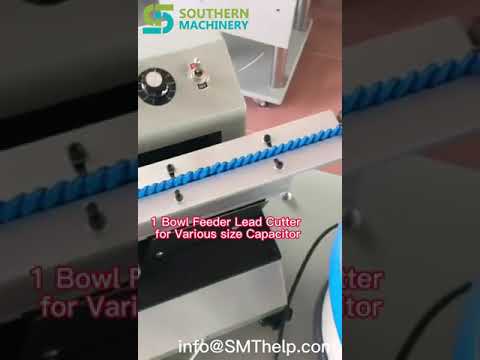

Feeder Quality Testing
Feeder in Production Line
Audio Resources
Listen to feeder technology insights
Audio recordings covering flexible feeder automation, feeder technology transformation, and odd-form feeder design principles.
Flexible Feeders Automate Odd-Form Components
How flexible feeders automate odd-form component handling in EMS factories
Feeder Technology Transformed Electronics Assembly
How feeder technology has transformed the electronics assembly industry
Designing Odd Form Feeders and Tracks
Engineering principles behind odd-form feeder and track design
Technical Resources
Download feeder documentation
Access detailed product brochures, operation manuals, 3D drawings, and configuration guides for our feeder product line.
Specialized in Design & Manufacturing THT SMT Feeder
Complete feeder catalog with specifications
Download PDF →THT Odd Feeder Configuration 2024
Smart EMS factory configuration guide
Download PDF →Feeder Calibration Jig Operation Manual
Setup, calibration and maintenance guide
Download PDF →Radial Feeder Operation Manual
RF1000 operation and maintenance instructions
Download PDF →Radial Tape Feeder 3D Drawing
Interactive 3D model — 90 bending layout
View 3D Model →Radial Tape LED Feeder 3D — Universal GSM
3D drawing for Universal GSM platform
Download PDF →SMT Solder Tin Chip Feeder 3D
3D drawing for solder tin chip feeder
Download PDF →Full Feeder Product Category
Browse all feeder products on smthelp.com
View Online →Application FAQ
Questions before you order
Common questions about our custom SMT and THT feeders. For specific component requirements, send us a sample and we will design a feeder tailored to your needs.
What types of feeders do you design and manufacture?
We design and manufacture eight feeder types: RF1000 Radial Tape Feeder, AF2000 Axial Tape Feeder, VF3000 Vibration Tube Feeder, TF4000 Multi Tube Feeder, BF200L Vibratory Bowl Feeder, SLF100X Label Feeder, SSTF01 SOP Tube Feeder, and S-JVF03 JUKI Vibration Feeder. We also design custom odd-form feeders for unique component shapes.
How much does an odd-form feeder cost compared to a THT machine?
An odd-form feeder costs $5–8K, compared to $50–70K for a dedicated THT insertion machine. This is approximately 1/10 the cost while enabling your existing SMT pick-and-place machine to handle THT and odd-form components automatically. The ROI is typically very high due to labor savings.
Which SMT machines are your feeders compatible with?
Our feeders are compatible with Fuji (NXT, CP series), JUKI (KE3020V, RX6, RS-1), Samsung (SM series), Yamaha (YSM20, YG series), Universal (GSM platform), Siemens (Siplace series), and Panasonic (CM, NPM series). For non-standard machines, we design custom interface solutions.
Can you customize a feeder for my specific component?
Yes. Send us your component sample or specification (body size, lead span, lead diameter, tape pitch, package type). We design and manufacture a feeder tailored to your exact requirements. Customization lead time is typically 1 month.
What is the cycle time and feeding accuracy?
Radial and axial tape feeders achieve 1.5–2s cycle time. Vibration tube feeders achieve 2–3s. The SSTF01 SOP tube feeder achieves 0.8s feeding speed with ±0.5mm accuracy. The SLF100X label feeder achieves ±0.2mm accuracy on both X and Y axes.
Do you hold patents for feeder technology?
Yes. We hold 1 invention patent and 2 new practical patents for THT radial feeder technology, with additional patents under application. Our odd-form feeder design is proven in production at GE, Bosch, Philips, Flex, Jabil, and Juki facilities.
What after-sales support do you provide?
We provide 7x24 worldwide support, free installation and training, 1-day lead-time for spare parts, and 1-month custom solution development. Video technical support and online support are available throughout the feeder lifecycle.
What information do you need for a quotation?
Please provide: component specifications (body size, lead span, lead diameter, height), package type (tape, tube, bulk, reel), tape pitch, your SMT machine brand and model, required cycle time, and daily production volume. A physical sample is ideal for custom designs.
Need a custom feeder for your component?
Send us your component sample. We will design and manufacture a feeder tailored to your exact specifications. 20+ years experience. Patent owner. Serving GE, Bosch, Philips, Flex, Jabil.
