Enhancing efficiency and precision in electronics manufacturing. Specialized feeders for axial, radial, tube, vibratory bowl, belt, label, and tray types — compatible with ANY SMT machine.
Enable your SMT machine with Auto Insertion Function — save labor, reduce costs, and boost productivity in smart factories.
THT Machine costs $50~70K, while Odd Form Feeder is only $5~8K. Achieve the same auto-insertion capability at a fraction of the price.
Save significantly on labor cost of manual insertion. Quick payback period with improved machine utilization and production throughput.
High compatibility with ANY SMT machines — JUKI, YAMAHA, Panasonic, Samsung, Universal, and more. Quick installation and transfer.
Supports IO communication, PLC control, and seamless integration with MES/ERP systems. Enables real-time inventory and traceability.
Cycle times as fast as 0.7s per piece with dual-track output. Motor-driven feeding with precise stepper motor positioning.
Feeding accuracy of ±0.2mm with optical fiber sensing and software compensation. 1000+ consecutive feeding tests without abnormality.
Founded in Shenzhen in 2011, we specialize in designing and manufacturing advanced SMT/THT machinery for PCB assembly automation.
Over two decades of expertise in SMT & Auto Insertion solutions. Existing customers include GE, Bosch, Philips, Flex, Jabil, and Juki.
1 Invention Patent & 2 New Practical Patents for THT radial feeder. More patents under application. True innovation in feeder technology.
Customize SMT line layouts all over the world. Provide all brand spare parts with warranty. Your solid & flexible one-stop partner.
From standard to odd-form parts — programmable controls, high compatibility, robust construction, and improved labor utilization.
Best Seller

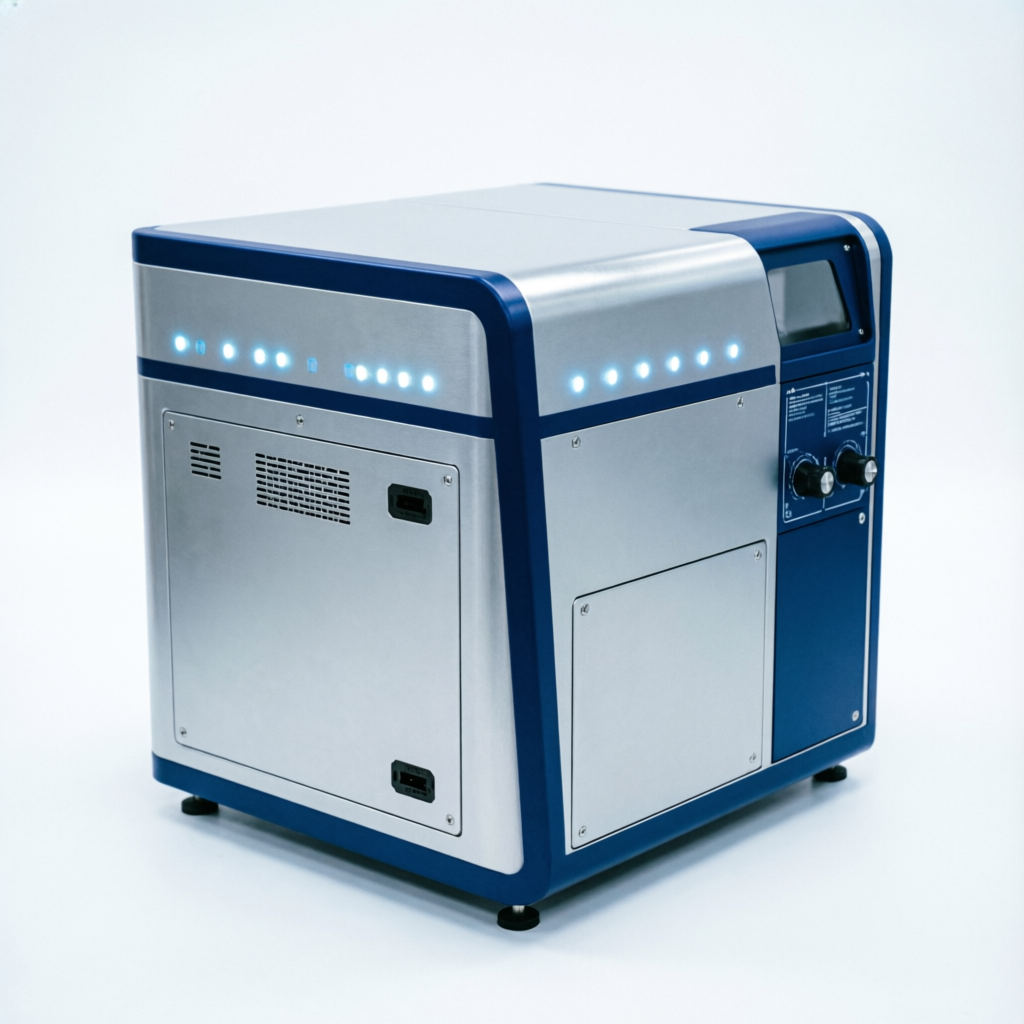

Automates feeding, shaping, cutting, and bending of radial components. Integrates with SMT machines for automatic DIP insertion. Supports electrolytic capacitors, Y-capacitors, terminals, springs.
Popular

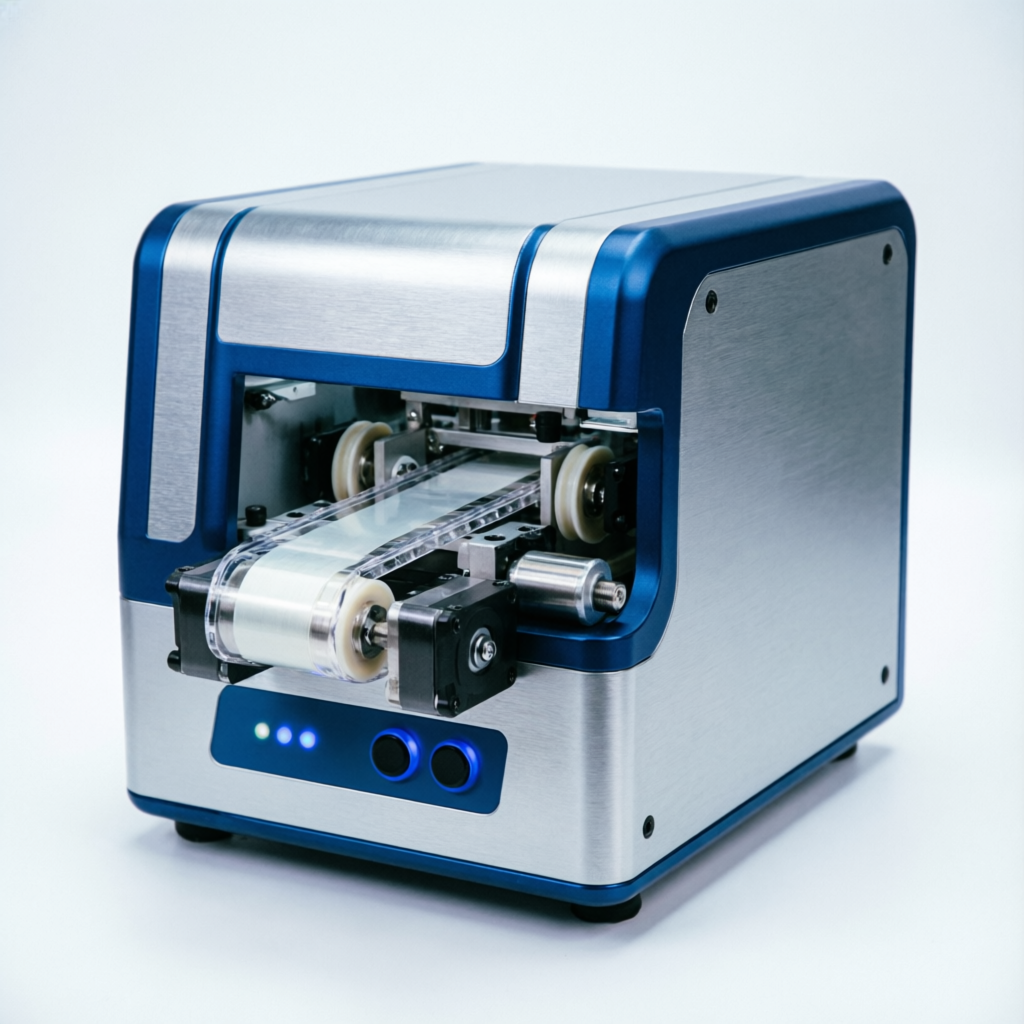

Processes horizontal resistors, diodes, and braided jumpers. Features pin-clamping before foot-cutting to prevent material jumping. Integrated CCL mechanism for simple maintenance.
Dual Track

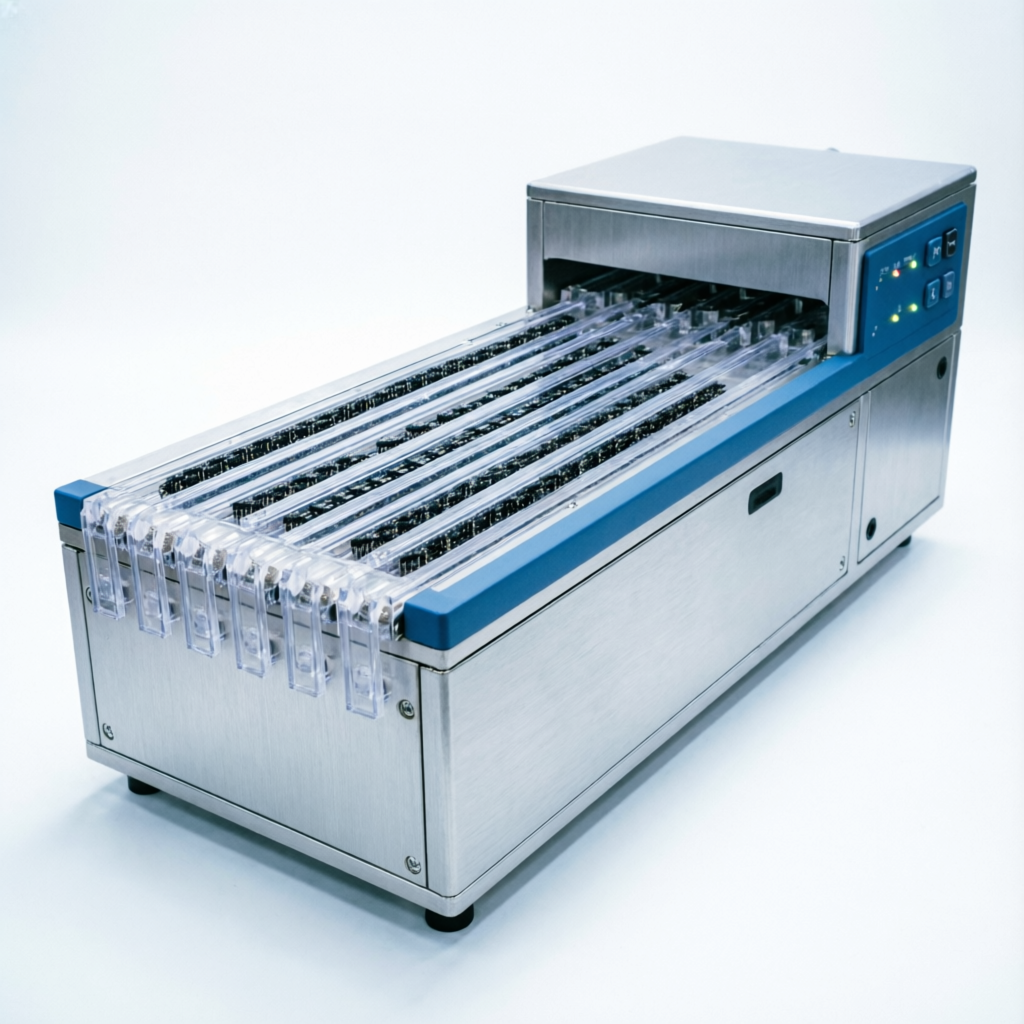

Automates feeding of tube-mounted components including DIPs, transistors, relays, transformers. Dual-track output with up to 40 tubes storage capacity. Motor-driven spring feeding.
4-Track

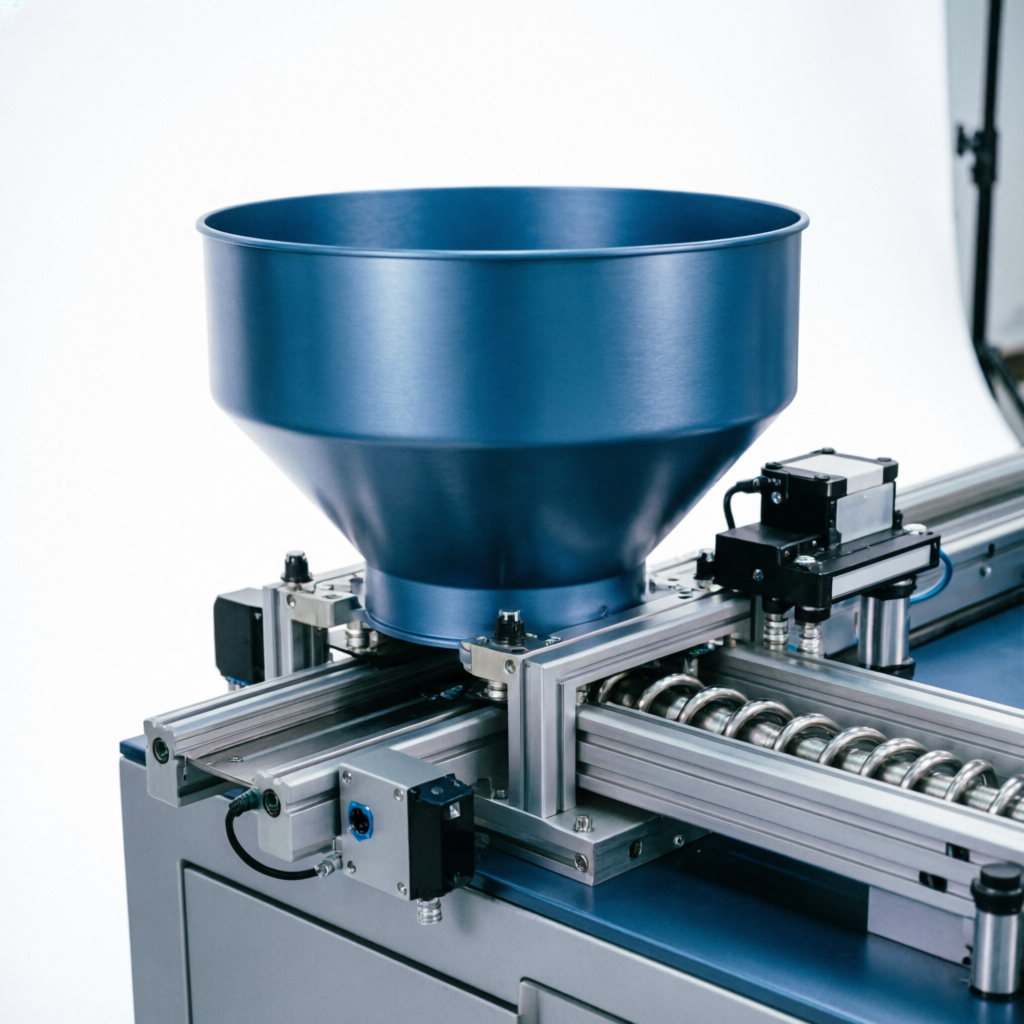

Automates bulk component feeding with sorting, screening, cutting, and shaping. Double-layer 4-track design with only 231mm width. Supports polarity sorting and lead cutting.
Compact

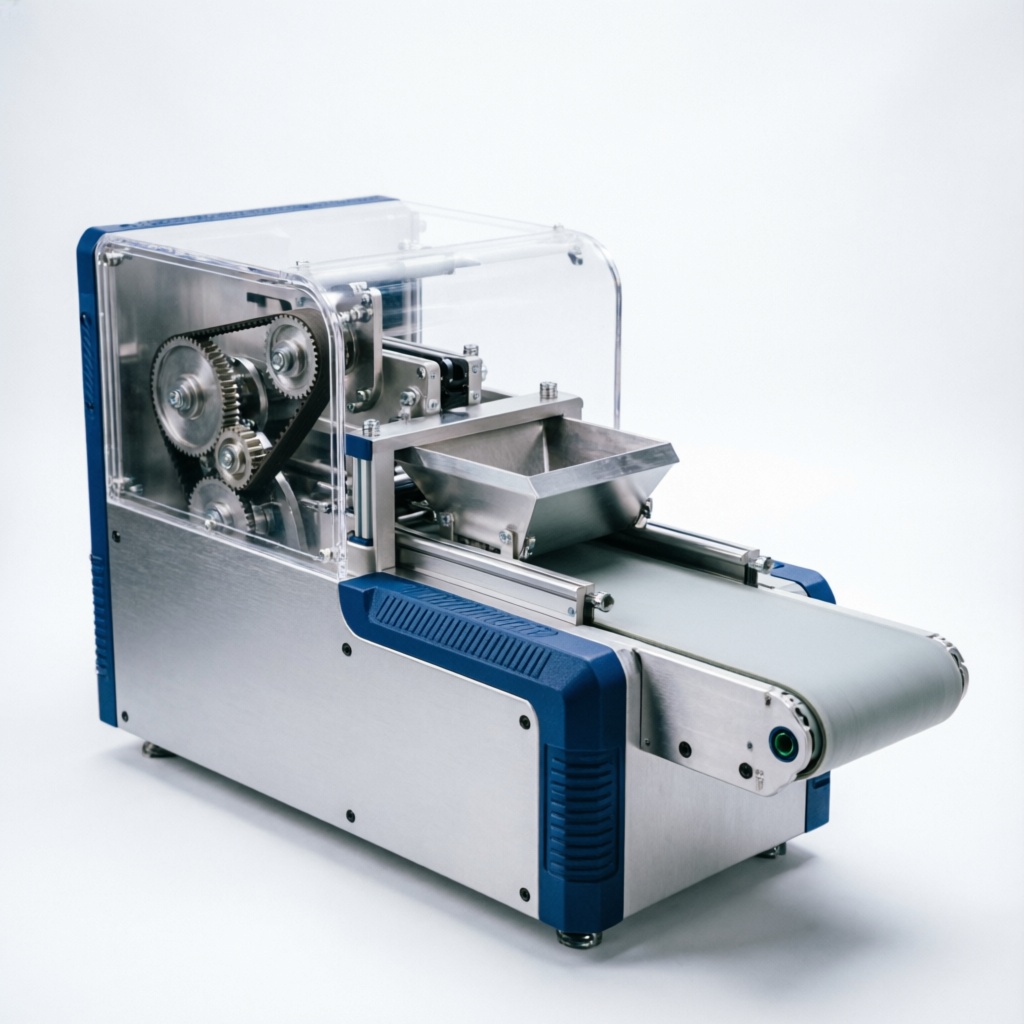

Compact, quiet, and quickly replaceable. High versatility for multi-pin components. Material selection track with NG return. No packaging required — saves packaging costs.
MES Ready

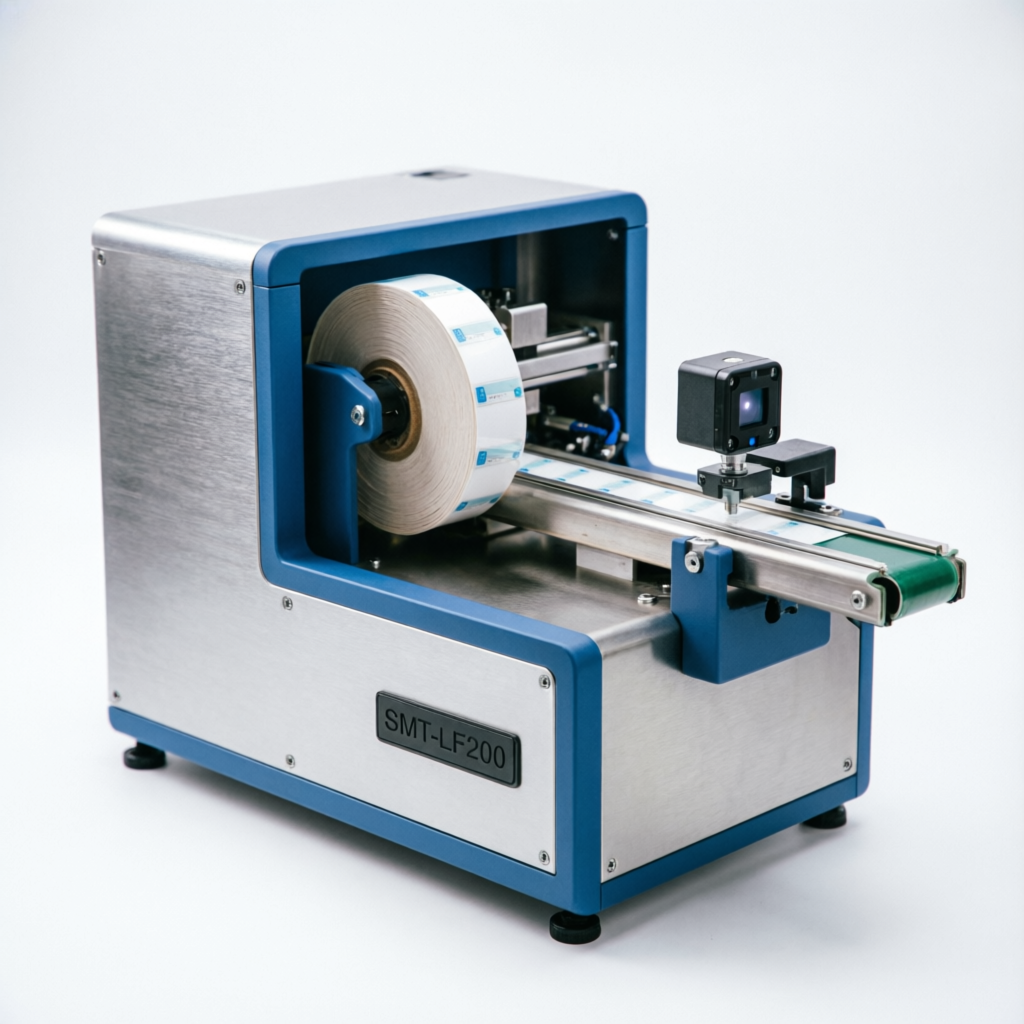

Automates placement of QR labels for MES. Handles FPC reinforcement sheets, foam, double-sided tape, protective film. Roll stripping method with optical fiber positioning.
High Capacity

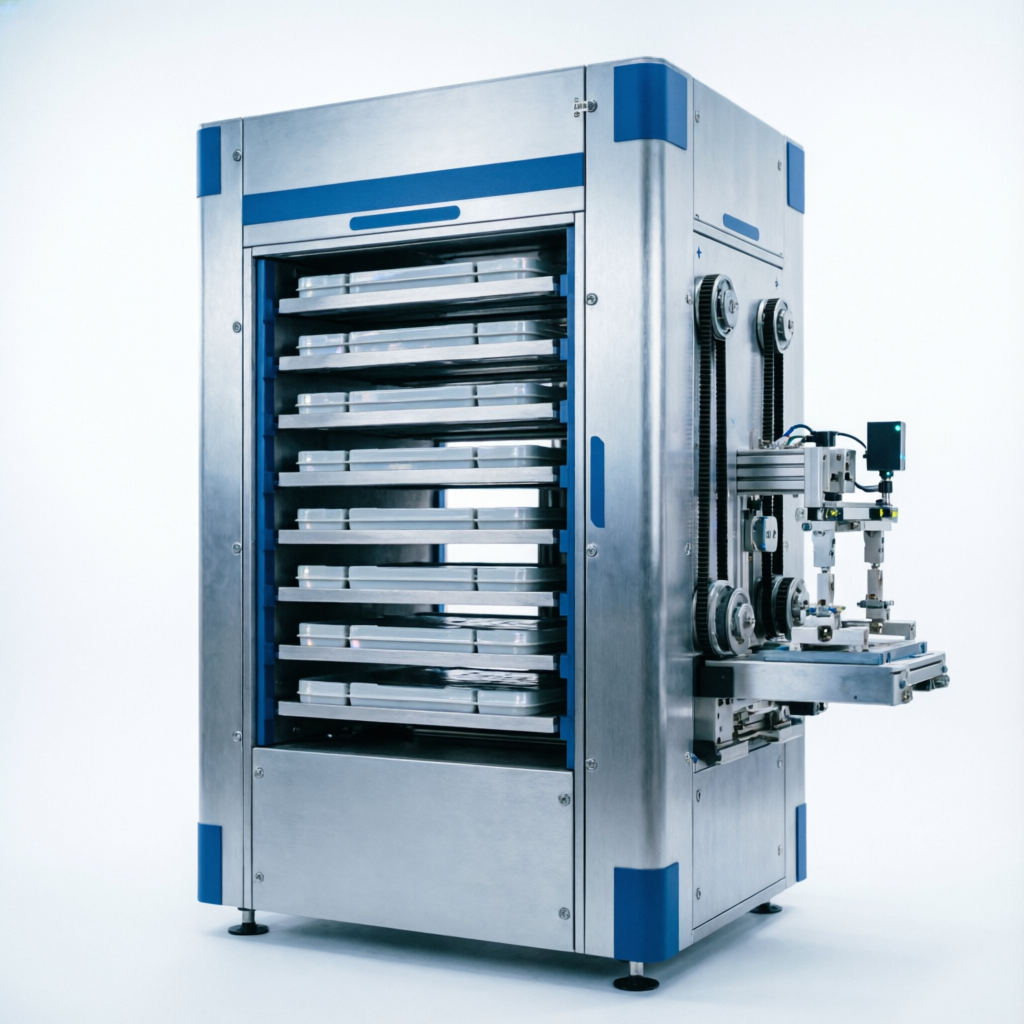

Automates diverse tray material supply for SMT and auxiliary machines. Supports transformers, relays, hardware, plastic parts. Up to 40 trays loaded. Servo motor driven.
Auto Cut

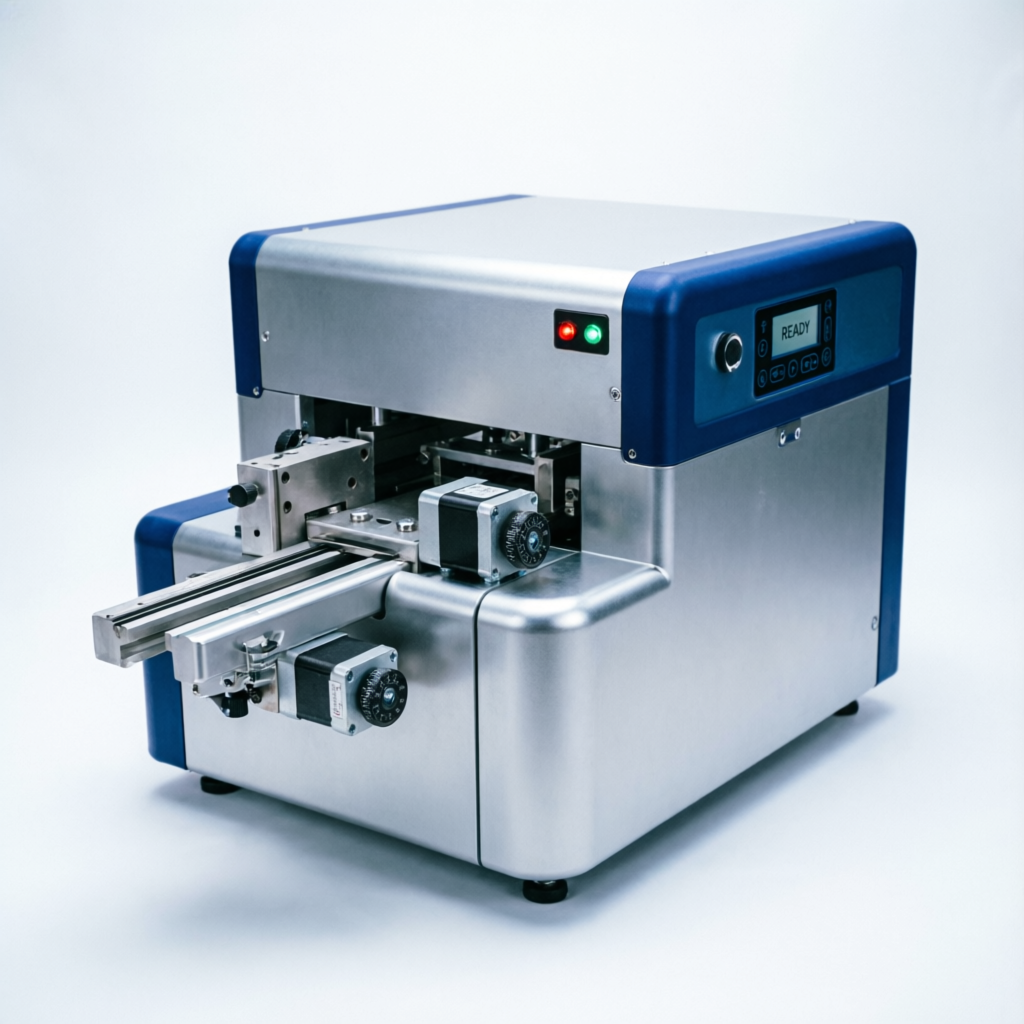

Automates cutting and feeding of coiled tin sheet/wire. For components needing multi-times soldering like 3-pin transistors, USB jack pins. Stepper motor driven with air cylinder cutting.
Auto Lock
For handheld and automatic screw locking machines. Stable feeding, fast speed, low noise. Can be combined with non-standard machines and robotic arms for automated production.
Multi-Function

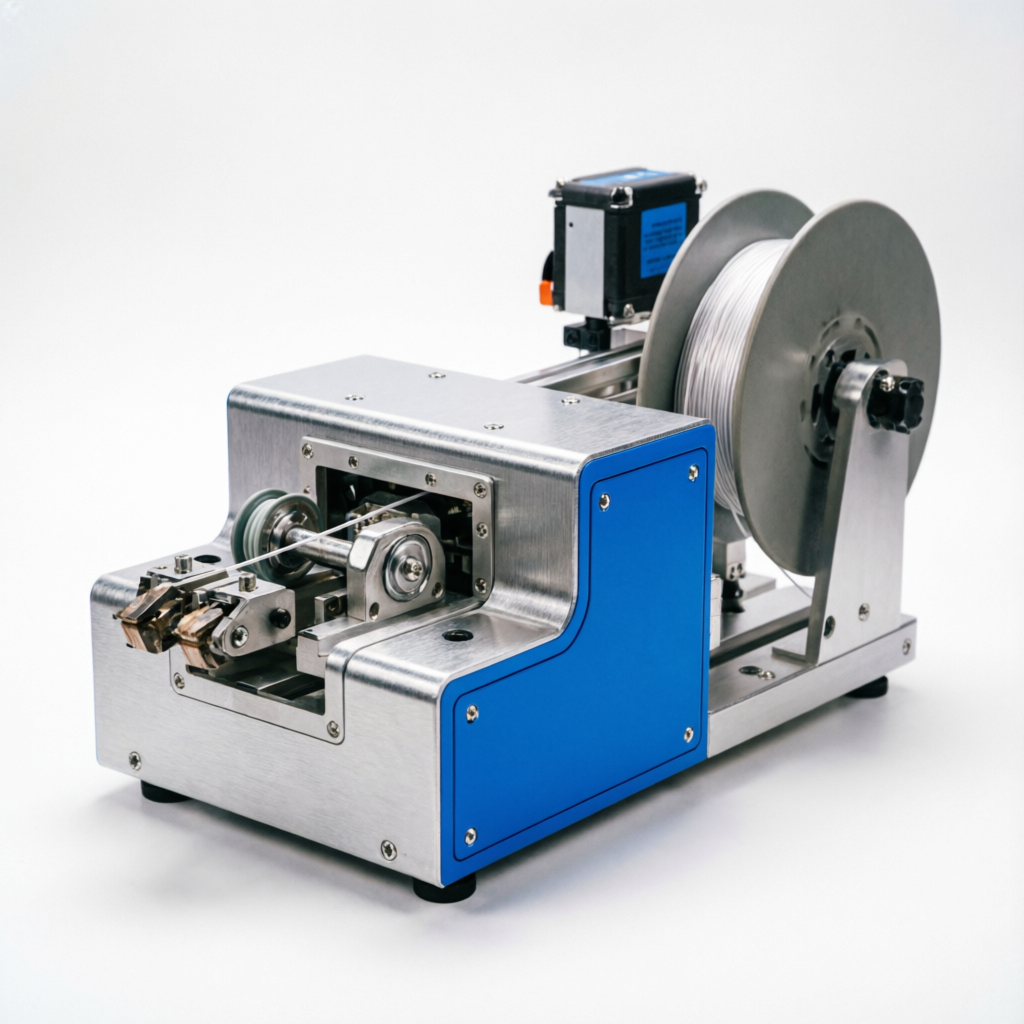

Strip single-strand, double-strand, flat wire, multi-layer wire, optical fiber and coaxial cable. Supports robot arm and auto insertion machine. Online and offline capable.
No Waste
Fast, high-precision feeding via motor, ratchet, and photoelectric sensors. Waste-free cutting, forming, and feeding for rolled copper wires. Rapid 5-minute mold changes.
Precision
Automates cutting and feeding of reel terminals for SMT THT machines. Integrates with robots for automated, labor-saving production. Stepper motor driven with air cylinder cutting.
Detailed technical parameters for all feeder models. All products undergo 1000+ consecutive feeding tests and 48-hour aging tests.
| Model | Type | Dimensions (L×W×H) | Weight | Cycle Time | Accuracy | Power |
|---|---|---|---|---|---|---|
| RF1000 | Radial Tape | 500×100×165mm | — | 1.5-2s | ±0.2mm | 24V DC |
| SRF1001 | Radial Tape | 720×92×165mm | 10Kg | 1s | ±0.2mm | 24V DC |
| RTF-2002 | Radial Tape | 680×76×140mm | — | ≤1s | ±0.2mm | 24V DC |
| AF2000 | Axial Tape | 700×100×165mm | — | 1.5-2s | ±0.3mm | 24V DC |
| ATF-1002 | Axial Tape | 710×92×200mm | — | ≤1s | ±0.3mm | 24V DC |
| TF4000 | Tube Feeder | 1480×100×165mm | — | 1.5-2s | ±0.5mm | 24V DC |
| TF-1001D | Tube Feeder (Dual) | 1460×80×1148mm | — | ≤0.7s×2P | ±0.5mm | 24V DC |
| BF2002D | Vibratory Bowl | 1700×600×1200mm | — | ≤1s×4P | ±0.5mm | 220V |
| SBF1001 | Vibratory Bowl | 1120×460×910mm | 150-190Kg | 0.8s | ±0.5mm | 220V |
| S-MVF01 | Bulk/Belt Feeder | 850×140×260mm | 12Kg | 1.5-2s | ±1mm | 220V |
| SLF1001 | Label Feeder | 650×165×320mm | 7.5Kg | — | ±0.2mm | 24V DC |
| STP1001 | Tray Feeder | 1160×790×1530mm | 75Kg | 3s | ±1mm | 220V |
| SSPC101 | Solder Chip | 540×115×230mm | 7Kg | 1.2s | ±0.5mm | 24V DC |
| SRT7001 | Reel Terminal | 550×130×110mm | 10Kg | 0.8s | ±0.5mm | 24V DC |
| SF1000 | Screw Feeder | 420×260×240mm | 15Kg | — | — | 220V |
| SW-02 | Stripped Wire | 700×285×350mm | 32Kg | — | — | 220V |
Listen to our expert discussions on feeder technology, odd-form component automation, and electronics assembly innovation.
How flexible feeder solutions are transforming odd-form component handling
The evolution of feeder technology and its impact on modern electronics manufacturing
Engineering insights into custom odd-form feeder design and track optimization
See our feeders in action. Real working videos from our factory and customer sites around the world.
RF1000/SRF1001 in action on SMT line
TF4000/TF-1001D dual-track feeding
BF2002 4-track bulk component feeding
AF2000/ATF-1002 horizontal component feeding
SLF1001 automated label placement
STP1001 automated tray supply
RTS-103/SSPC101 tin wire cutting and feeding
S-MVF01 compact bulk component feeding
SF1000 automatic screw locking
Our feeders are successfully integrated with leading SMT machine brands worldwide.
Odd form machine configuration
Odd form machine configuration
Odd form machine configuration
Odd form machine configuration
Radial tape LED feeder integration
SMT tube stick vibrating feeder
Simplifies receiving, storage and retrieval. Delivers full traceability. Automatically monitors stock levels with EMQX intelligent connectivity.
Stores 7-inch SMT reels. 7 layers × 14 reels = 1400 reels capacity. Size: 2170×400×1900mm. Power: 100W.
Stores 13-inch SMT reels. 4 layers × 10 reels = 400 reels capacity. Size: 2170×640×1900mm. Power: 100W.
Real-time inventory & traceability. Seamless MES/ERP integration. Supports automation and "unmanned" material flow. Enhanced data analytics.
Specialized nozzles for odd-form component picking and placing. Compatible with JUKI, YAMAHA, Samsung and more.
Fixed arm and swing arm design enables grabbing odd shape components. Used for odd form components, special connectors, hybrid circuits.
Picking and placing THT components. Interchangeable rubber tips for mounting dies. Excellent hardness, precision, and wear resistance.
Excellent hardness and precision. Enhanced durability and wear resistance. Advanced engineering design for long service life.
Get a customized feeder solution for your SMT/THT machine. Contact our engineering team for a free consultation and quote.
