Standard feeders that don't fit odd parts
Generic feeders stall on odd-form, reel-terminal and taped components, forcing workarounds that cost more than the parts.
SMT & THT automation · Custom feeders & nozzles
SMT Feeder & Nozzle Solutions
Custom-built feeders and nozzles that turn awkward components into a smooth, automated feed — matched to ANY SMT or THT machine on your line.
Feeder family: axial, radial, label, bowl, tube, belt and tray. Customized nozzles and grippers with a 99.99% pickup-rate design target. Reference lead time: 1 week for customized THT feeders.
10+Feeder models — axial, radial, label, bowl, tube, belt and tray
99.99%Nozzle pickup-rate design target for customized grippers
1 wkReference lead time for customized THT electronic component feeders
The hidden cost of manual and mismatched feeding
Standard feeders and nozzles are quietly taxing your line
Every component that does not feed cleanly costs pickup time, rework and operator attention. Left unmanaged, it steals capacity, clutters the line and undermines the efficiency your customers expect.
Feeding errors stop the line
Missed picks, jams and polarity flips at the feeder quietly destroy placement efficiency and yield.
Off-the-shelf nozzles damage parts
One-size nozzles scratch, drop or mis-pick delicate components — rework and field failures follow.
Manual feeding wastes operators
Hand-placing components ties up skilled operators who should be running the line.
Integration nightmares
Mixed fleets of JUKI, Panasonic, Yamaha, FUJI, UIC and Samsung machines each need their own feeding solution.
Long custom lead times
Most custom equipment vendors quote months — your line cannot wait that long.
Feature · Advantage · Benefit
What a custom feeder and nozzle program actually changes on your floor
Select a feature to connect the verified capability with its technical advantage and the practical benefit your factory feels.
Reference product photo
Service
Light, heavy or sample-level customization
Design level matched to your component and volume.
Feature
Custom design service covering light customization, heavy customization and prototyping for feeding systems.
Advantage
The feeder is engineered around your component instead of the other way around.
Benefit
No more workarounds — components feed first time, every time.
Light custom · Heavy custom · Prototyping
Feeder models — axial, radial, label, bowl, tube, belt, tray and terminal.
Nozzle pickup-rate design target for customized gripper and vacuum nozzles.
Feeding accuracy reference on the axial tape feeder configuration.
Reference lead time for customized THT electronic component feeders.
Source-verified technical data
Key specifications for project evaluation
Values support initial evaluation and remain subject to final technical confirmation against your feeder cart and tape formats.
Feeder family reference models
From the Feeder / Nozzle Catalog V03| Axial Tape Feeder | SAF1001 — taped resistors, triodes and jumper wires; U-shaping and lead trimming |
|---|---|
| Radial Tape Feeder | SRF1001 — radial taped components, 27.5 mm large-span option |
| Label Feeder | SLF1001 / SLF100X — label peeling and feeding for Samsung SM / SME mounters |
| Vibration Bowl Feeder | SBF1001 / SBF2002 — bulk components, polarity sorting and lead cutting options |
| Tube Feeder | STF1003 / SSTF01 — stick and SOP tube components |
| Tray Feeder | STP1001 — tray components with pickup support |
| More models | SJF1001 jumper wire · SSPC101 solder chip · SRT7001 reel terminal |
Reference spec snapshot

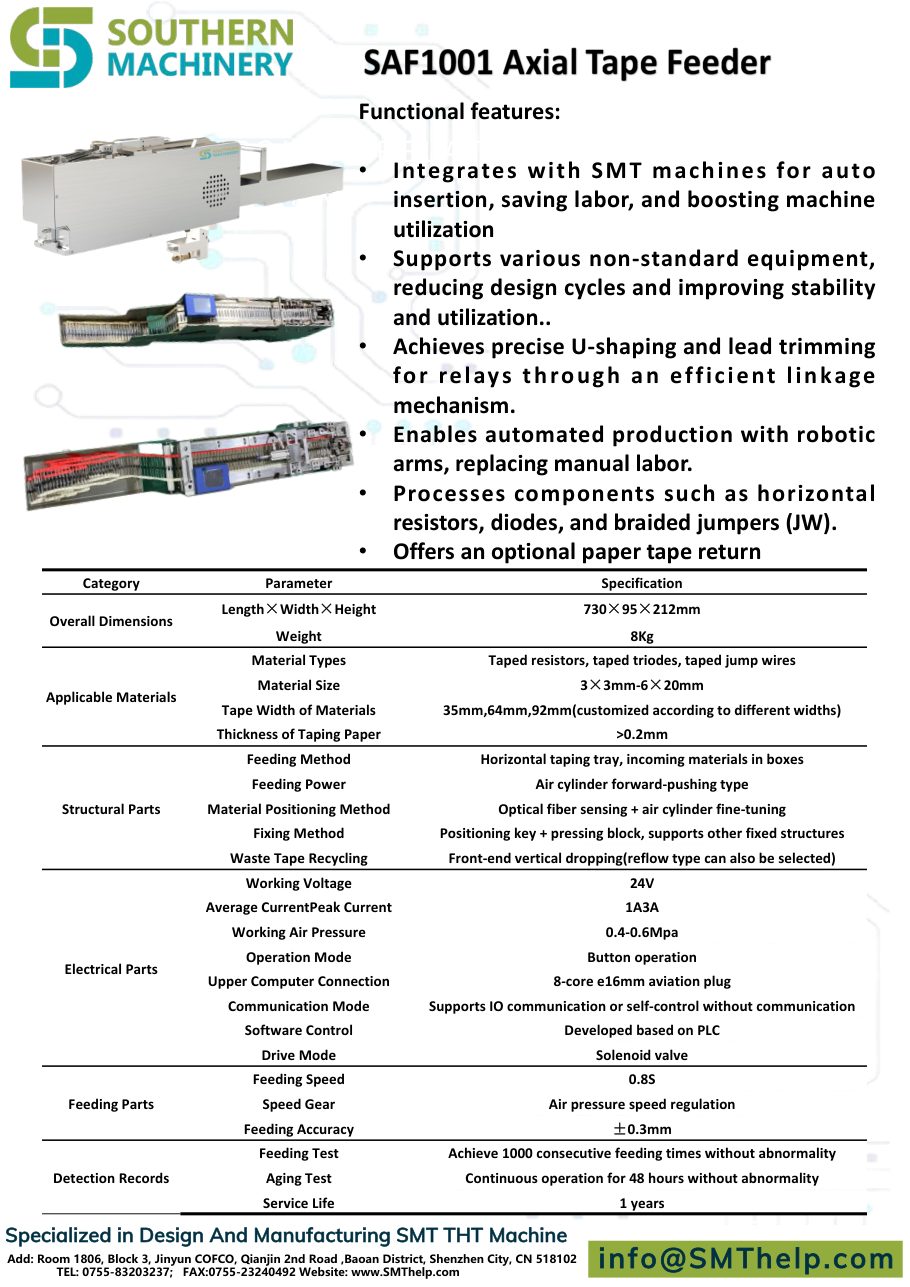

Documented configuration data| SAF1001 axial tape feeder | 730 × 95 × 212 mm, 8 kg, 24 V, feed 0.8 s, accuracy ±0.3 mm, tape widths 35 / 64 / 92 mm |
|---|---|
| SBF1001 bowl feeder | 760–1120 × 460 × 910 mm, 150–190 kg, 220 V, feed 0.8 s, accuracy ±0.5 mm, parts 3 × 3 – 50 × 50 mm |
| Electrical | 24 V or 220 V by model; PLC-based control; IO communication or self-control |
| Testing | 1000 consecutive feed cycles; 48-hour continuous aging test |
Model and specification data from the Southern Machinery Customized Feeder Nozzle Catalog V03 and reference production data. Each custom feeder is engineered to your component, machine and line; final specifications are confirmed after technical review.
Axial · Radial · Label · Bowl · Tube · Belt · TraySAF1001SLF100XSBF1001Custom nozzlesANY SMT machine1-week lead time
Product & installation visuals
See the feeder family on the datasheet and on the floor

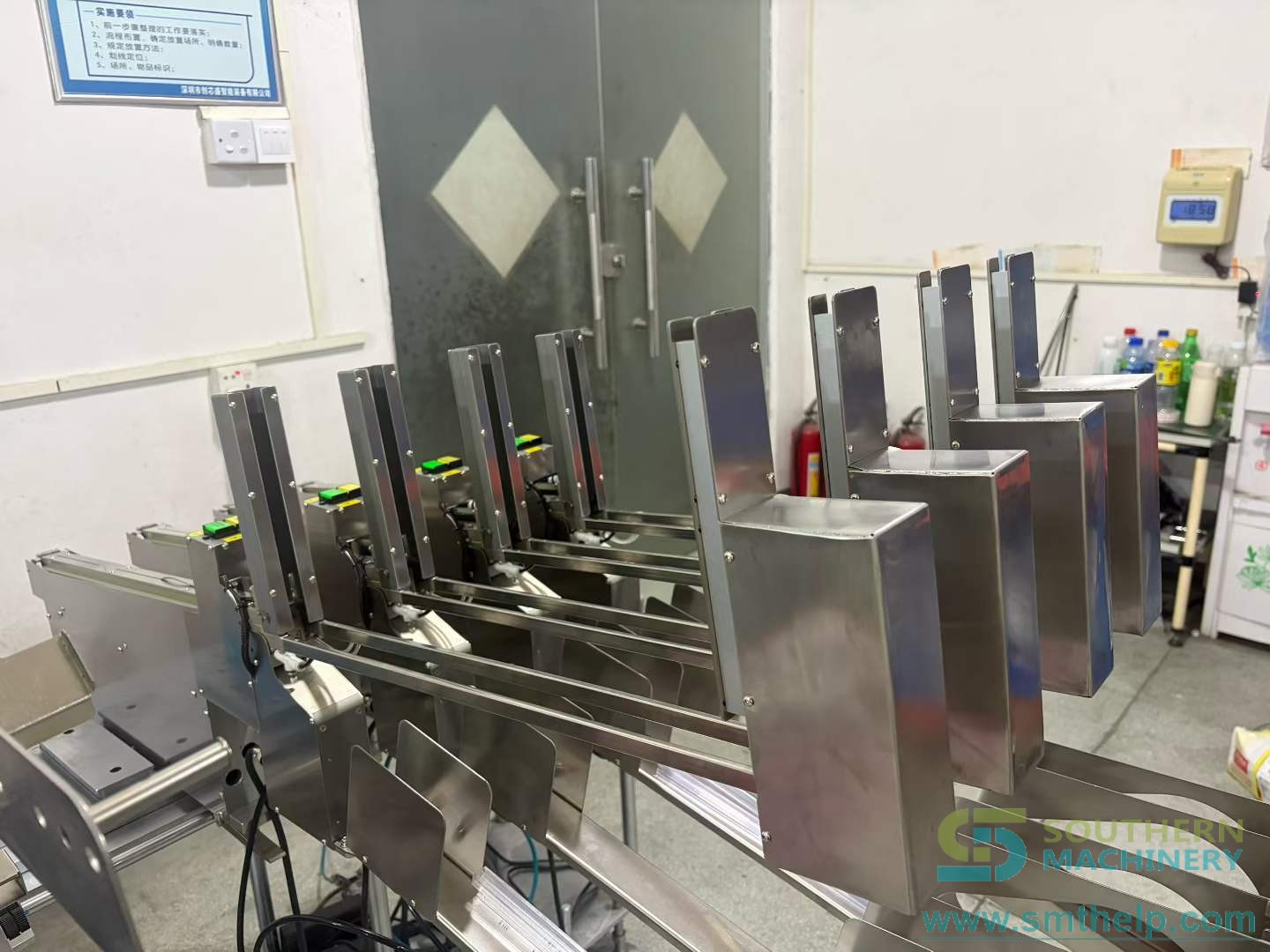

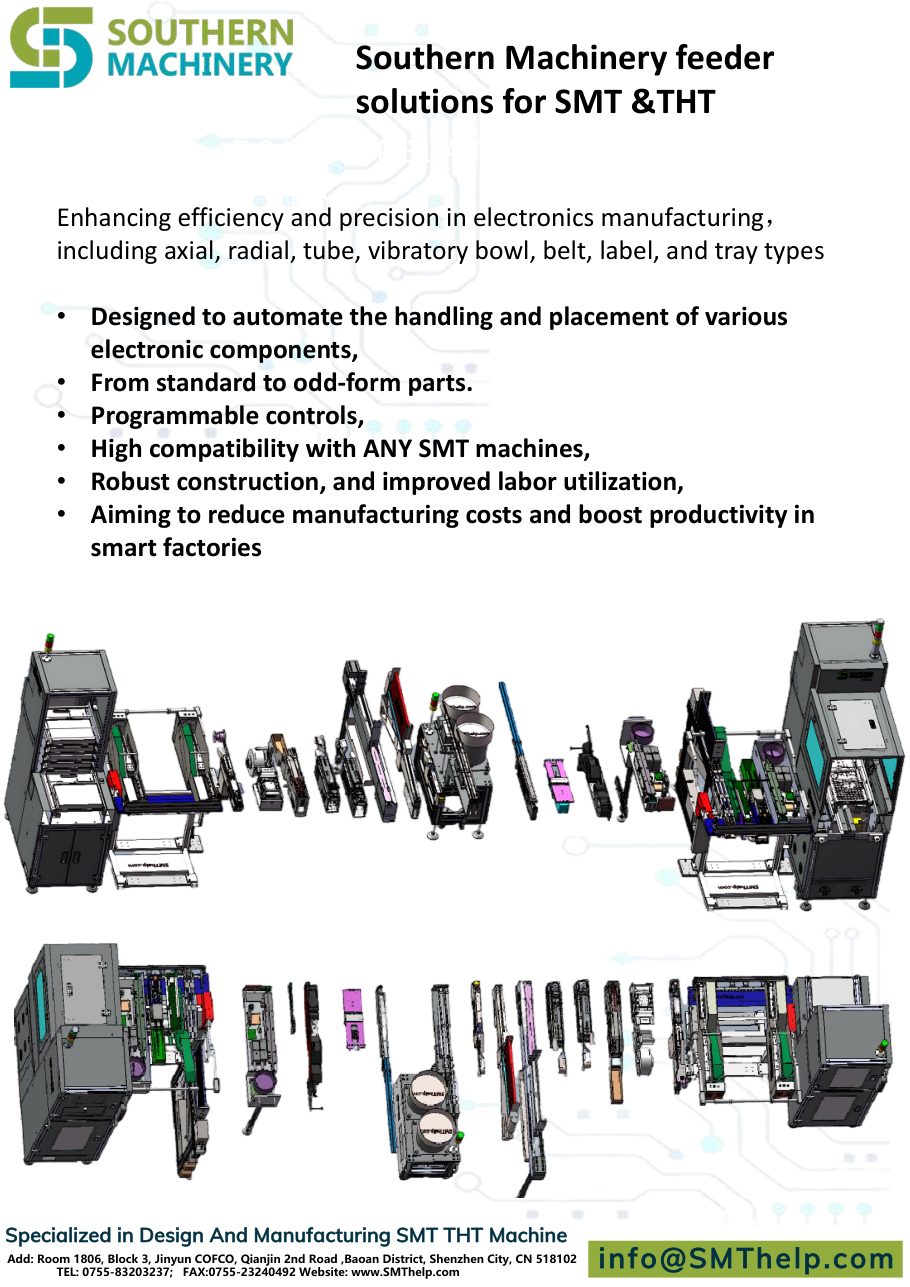

Click any image to enlarge. Views cover the feeder solutions flyer, custom tape and label feeders, gripper nozzles and live production deployments.
Optional online media
Watch Southern Machinery feeders and nozzles in action
Videos load only after you select them, keeping this page lightweight. All clips are from the official Southern Machinery YouTube channel.

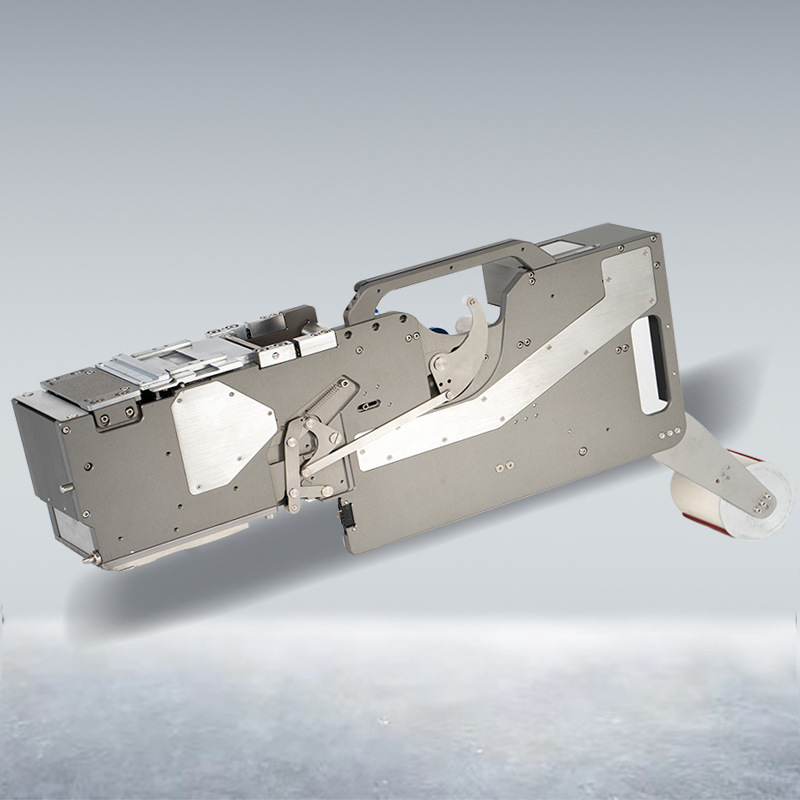

Label feeder by Southern Machinery
Label peeling and feeding for Smart EMS factories.

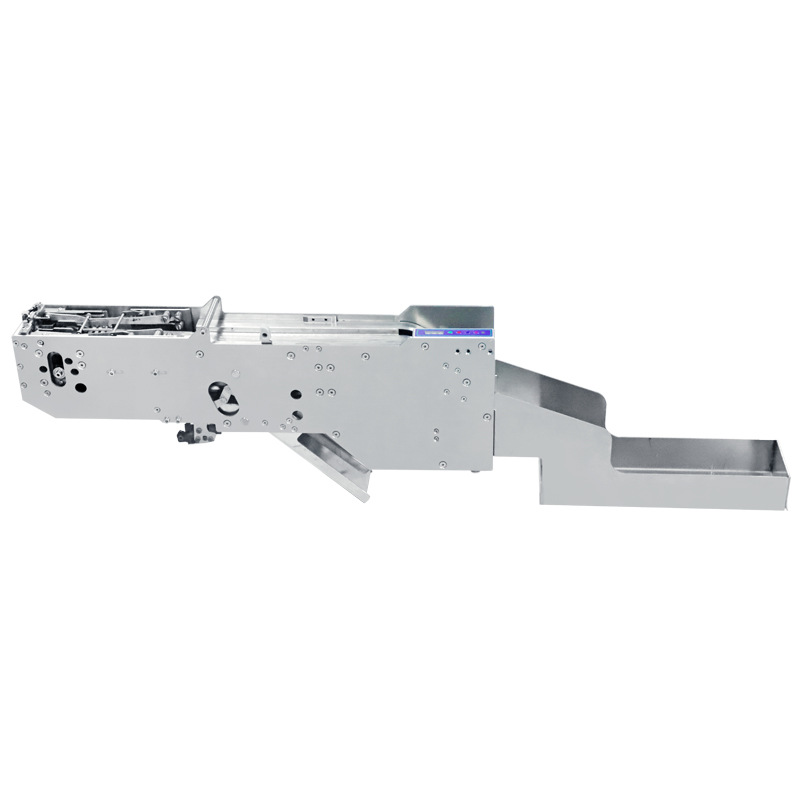

ATF-1002 axial tape feeder
Solves axial component feeding for JUKI, Panasonic, Yamaha, FUJI, UIC.

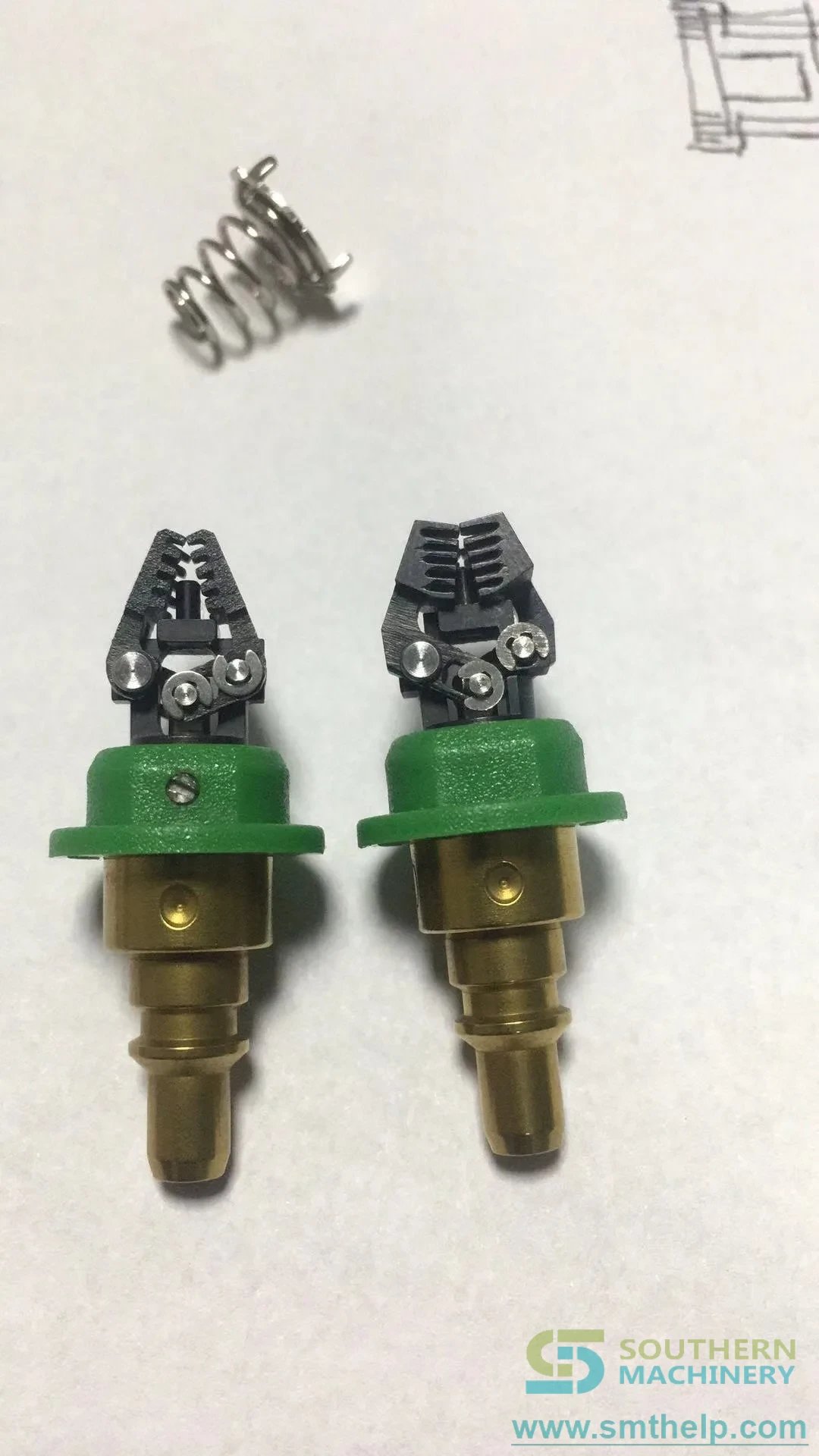

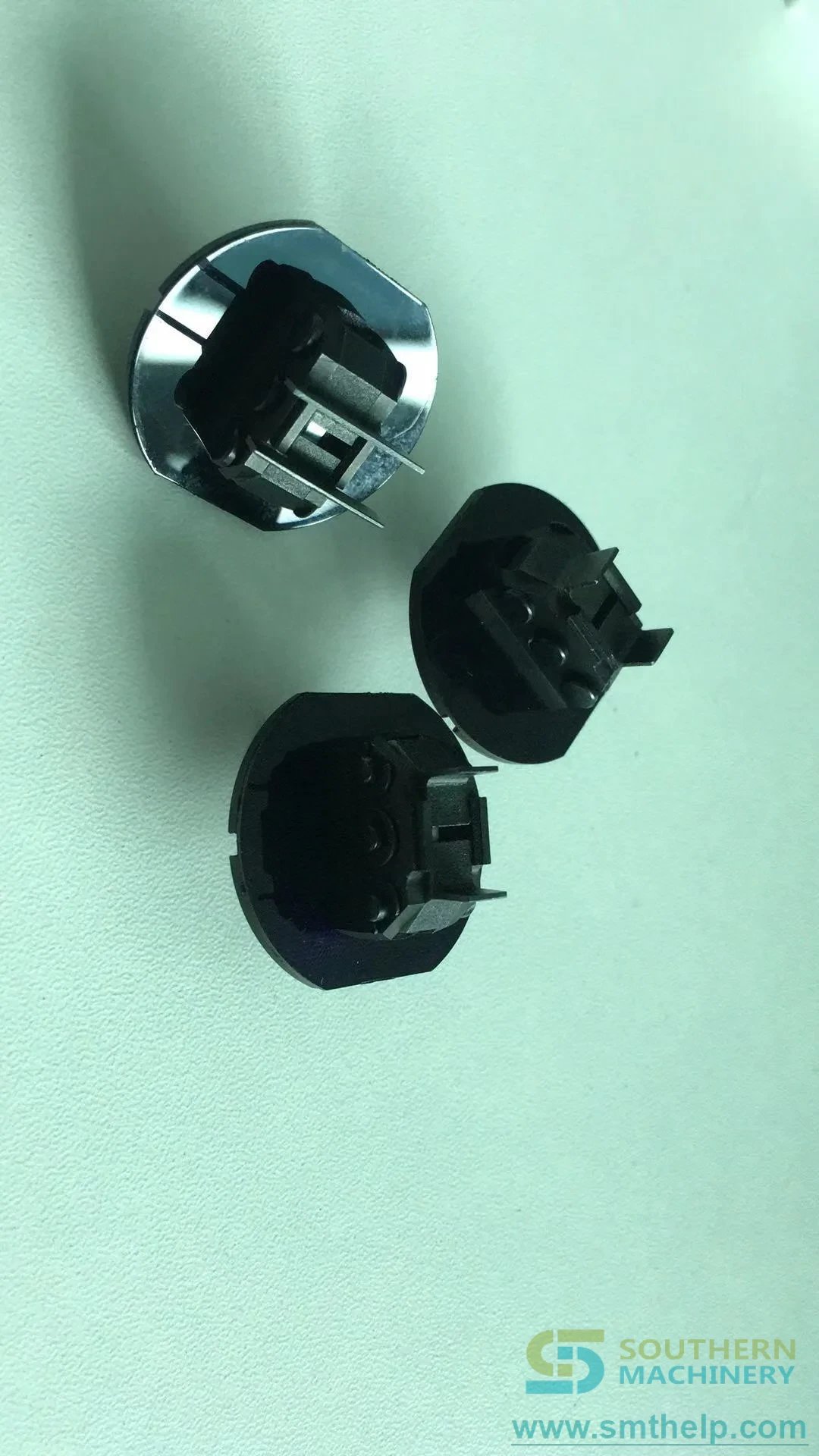

Customized gripper nozzle
Design and manufacturing of SMT gripper nozzles.
99.99% pickup rate
SMThelp specialized in SMT nozzle design and manufacturing.
You are offline. The product presentation remains available; videos can be loaded when a connection is restored.
From component review to production
Engineering support around your feeder deployment
We confirm the feeding method and machine interface before you commit — standard models or a fully custom design.
Share component samples, drawings and your mounter models.
Feeding method, cycle time and integration confirmed within 24 hours.
Light, heavy or sample-level customization with drawings for approval.
Feeder commissioned on your machine; operators trained on setup.
One-year warranty with long-term technical support and spares.
Technical evaluation FAQ
Questions buyers ask before ordering
Which feeders can Southern Machinery build?
The feeder family includes axial tape (SAF1001), radial tape (SRF1001), label (SLF100X), vibration bowl (SBF1001 / SBF2002), tube (STF1003 / SSTF01), tray (STP1001), jumper wire (SJF1001), solder chip (SSPC101) and reel terminal (SRT7001) feeders, plus fully custom non-standard designs.
Do your feeders work with my machines?
Installation references cover JUKI, Panasonic, Yamaha, FUJI, UIC and Hanwha / Samsung SM and SME mounters, as well as THT insertion machines. The feeder interface is matched to your machine during design review.
Can you customize a nozzle for my components?
Yes — gripper nozzles, vacuum nozzles and minichucks are designed around your part profile with a 99.99% pickup-rate design target. Custom nozzle design and manufacturing is a core service.
What is the lead time?
Customized THT electronic component feeders carry a one-week reference lead time. Larger machines and complex multi-feeder integrations are quoted per project after technical review.
How is reliability tested?
Reference models pass a 1000-consecutive-cycle feeding test and a 48-hour continuous aging test before delivery, with feeding accuracy documented (e.g. ±0.3 mm on the axial tape feeder configuration).
How do I get a price and delivery time?
Email info@smthelp.com or WhatsApp +86 136 0256 2576 with your component specs, machine models and quantity. Quotation and delivery schedule are provided after technical confirmation — typically the same working day.
Next step
Send your component specs and machine models for a quote
Tell us which components you need to feed, the mounters or inserters on your line, and the volumes involved. We reply with a design direction, quotation and delivery schedule.
